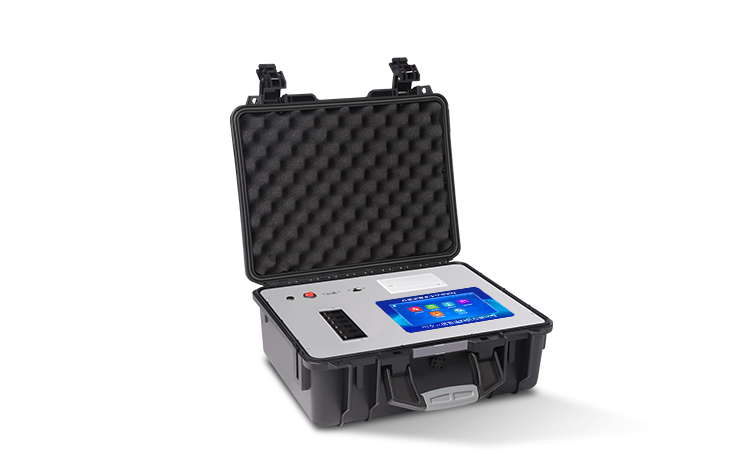

The heavy metal detector can be widely used for rapid detection of heavy metals such as lead, cadmium, hexavalent chromium, mercury, arsenic, iron, nickel, and aluminum (optional 3 items) in rice, grains, fruits, vegetables, medicinal materials, water quality, and aquatic products. The detection items can be customized according to customer needs.

Functional features:

1. This instrument uses optoelectronic technology to analyze and test the reflectivity of reaction products, quantitatively or qualitatively analyzing the content of the analyte in the sample.

2. Android intelligent operating system, 7-inch high-sensitivity true color touch screen, more efficient and user-friendly operation interface, intuitive and simple reading.

3. The instrument has 4G wireless networking, WiFi networking upload, and GPRS wireless remote transmission functions to quickly upload data.

4. Integrated portable rapid testing equipment, meeting the needs of on-site and mobile testing, capable of detecting all heavy metal detection items under the same software, and displaying the detection results intuitively through the same window.

5. It has multiple food safety testing projects, an open platform, and can add or remove testing projects.

6. Detection channels: 12 detection channels, capable of testing multiple samples simultaneously. Each sample is controlled by a program to work independently without interfering with each other.

7. High speed thermal printer, real-time printing of detection results. Built in large capacity battery, convenient for on-site law enforcement inspections.

8. Built in powerful database allows for direct selection of sample names, detection indicators, and inspection units on the instrument, as well as direct editing and input of sample names, detection indicators, inspection units, and other information into the sample database.

9. The body stores tens of thousands of test results and can also be exported for storage. It is also equipped with a USB interface for easy copying of data from a USB drive.

10. Support Wifi network, data can be uploaded on LAN and Internet, and the test results can be directly transmitted to the food safety supervision platform. Conduct regional food safety supervision and big data analysis processing, detect the long-term and short-term dynamics of regional food safety, and achieve technical parameters for food safety problem estimation and early warning:

◆ Equipped with a visible light source, capable of detecting visible light signals with detection values ranging from 0 to 30000.

The main control chip adopts ARM A7 4-core processor with a main frequency of 1.88GHz, which runs faster and has stronger stability.

When the standard sample simulating reflectivity is around 50%, the precision CV value is ≤ 0.8%.

◆ Dual use of AC and DC, AC (220 ± 22V)~50Hz ± 1Hz, DC 12V power supply, can be connected to car power supply

◆ Easy to carry and operate on site, the weight of the host is not more than 3kg.

◆ Multi wavelength cold light source, and all detection items can achieve simultaneous detection of all channels.

◆ Automatic adjustment and calibration of light source brightness

Pulse type constant current drive to avoid light decay and temperature drift caused by continuous light emission.

◆ Built in with the latest national limited edition standards, can continue to be updated.

◆ Password login can be set

◆ Continuous injection and continuous testing

The sample numbers are automatically accumulated.

The testing items can be expanded.

The test results are in an Excel spreadsheet, which can be copied by connecting to a computer.

◆ Storage capacity for 200000 test results

◆ High speed thermal printer, capable of automatically printing inspection reports upon completion of testing.

Standard USB interface, no driver installation required.

◆ Firmware upgradable

◆ Repeatability: ± 0.1% (A)

◆ Repetitive inhibition rate: ≤ 10%

◆ Accuracy of absorbance: ± 2.0%

Stability: ≤ 0.003A/3min

Linear error: ± 1.0%

Size: 360X300X125 (mm)
