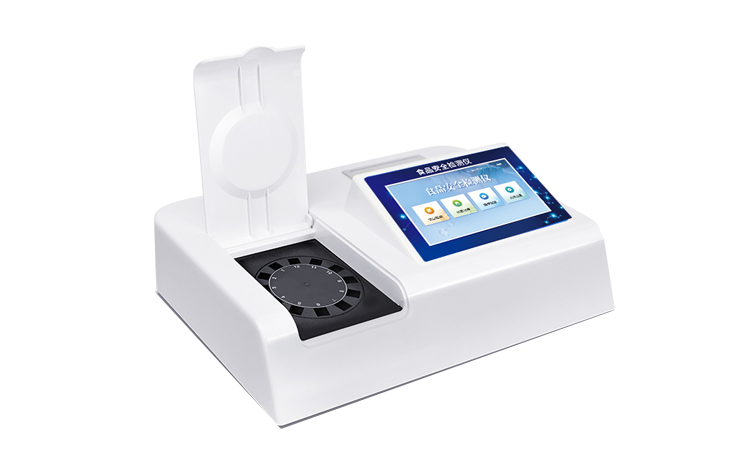

High precision food safety detector product introduction:

The nitrite rapid detector is an integrated food safety detection and analysis equipment that can quickly detect the nitrite content in meat, canned meat, smoked meat, sausages, dairy products, kimchi, pickled vegetables, etc; This instrument is based on GB5009.33-2010 "Determination of Nitrite and Nitrate in Food". Nitrite in food is extracted and reacts with detection reagents to produce colored compounds. The absorbance is then measured using a nitrite detector, and within a certain range, the absorbance is proportional to the content. Through testing, it can be determined whether the food meets national standards or whether it is excessively toxic. Reserve other testing programs and ports for the instrument, and easily add testing items according to future needs. In the future, it can be upgraded to a comprehensive type instrument for detecting aquatic and noodle products.

2、 Product Usage:

This high-precision food safety detector is an integrated fast detection and analysis equipment for food safety, widely used in units such as food and drug supervision bureaus, health departments, higher education institutions, research institutes, agricultural departments, breeding farms, slaughterhouses, food and meat product deep processing enterprises, inspection and quarantine departments, etc.



3、 Function Introduction:

1. The instrument adopts desktop integrated system detection technology, which highly integrates the spectrophotometric module, digital management module, and wireless communication module into one, supporting the detection of dozens of food safety testing projects, while reserving upgrade detection methods.

2. The instrument detection module is standardized and intelligent, and the detection items can be freely combined. The detection box is equipped with multiple standard detection units, and the detection modules can be adjusted for configuration.

3. Display screen: The instrument adopts a 7-inch LCD touch screen, running on the Android intelligent operating system. The main control chip adopts ARM Cortex-A7, RK3288/4-core processor, with a main frequency of 1.88GHz, easy to operate, and stronger performance.

4. Detection channel: 12 channels; Adopting a precision rotating colorimetric cell design and using the same chip and light source for calibration accuracy, it solves the error values between different light sources, making it more accurate and efficient.

5. Instrument light source: High precision imported four wavelength cold light source, each channel is equipped with 410, 520, 590, 630nm wavelength light sources, and comes standard with advanced optical path switching devices. The optical path switching function can achieve 64 wavelengths, and all detection items can be detected simultaneously in all channels.

6. Communication interface: equipped with wireless communication module, optional 4G (APN) communication module and Bluetooth transmission, and also has USB interface, which can achieve data storage and transmission in multiple ways.

7. Storage method: Supports USB storage, standard USB interface, no driver installation required. The storage capacity of the test results is over 200000 pieces, and it can generate Excel spreadsheets for copying, with login protection function.

8. Intelligent operating system:

8.1 Operating System: The instrument can automatically correspond to relevant detection channels on the same detection interface, selecting 1-12 sample names at once without exiting the interface, saving operation time. And each channel attribute and sample information can be edited separately, such as the sending unit, personnel, testing personnel, etc. When printing, check the print display option.

8.2. Limited amount regulation system: equipped with a limited amount query and compliance determination system for adding substances. After detecting the results, the system automatically calls the relevant national standards in the system database for comparison and judgment, objectively displaying whether the results are qualified.

8.3 Data supervision system: the data can be uploaded via LAN and Internet, and the test results can be directly transmitted to the food safety supervision platform. Conduct regional food safety supervision, big data analysis and processing, and data statistics, detect the long-term and short-term dynamics of regional food safety, and achieve food safety problem estimation and early warning.

8.4 Printing System: Equipped with a brand new printer, it can print information such as project name, QR code, sampling information, testing information, inspection information, review information, sampling date, testing date, etc.

9. Power supply mode: The instrument can be used for both AC and DC, with a 12V DC power supply (standard). It can be connected to a car power supply or optionally equipped with a 6-hour high-capacity rechargeable lithium battery. The battery level can be displayed in real-time, making it convenient for outdoor mobile testing.

10. The instrument has the functions of recalibration, locking, and factory reset,

11. Appearance size: 415X310X150 (mm), and can be equipped with an aluminum alloy carrying case
