Product Introduction:

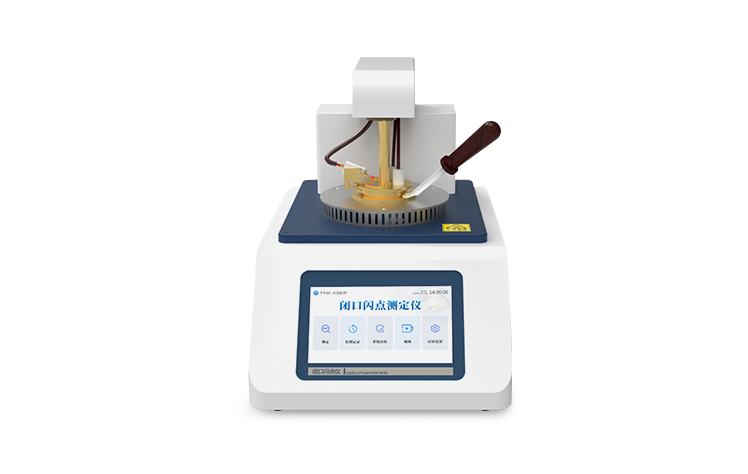

The fully automatic closed flash point meter is a specialized instrument used to measure the minimum temperature at which flammable liquids such as petroleum products and chemical solvents, when mixed with air to form a combustible gas mixture in a closed container and encounter a source of fire, produce an instantaneous flash fire.

Application scope:

Widely applicable to power, petroleum, chemical, commercial inspection, scientific research, etc., to ensure the safe storage, transportation, and use of materials.

Execution standards:

GB/T 261-2021；

ISO2719-2016。

working principle:

The instrument is heated according to the heating curve specified in GB/T 261-2021 method. When the temperature approaches the expected flash point value, it automatically ignites. When a flash point occurs, the instrument automatically locks the result, displays and prints it, and starts the fan to automatically cool the heater.

Technical parameters:

Project parameters

7-inch high-definition Android touch screen display, 1024 * 600 pixels

Measurement range: Room temperature~400 ℃

Temperature detection A-level PT100 (three wire system, temperature compensation)

Temperature detection accuracy of 0.1 ℃

Accuracy ± 0.5 ℃

Barometer accuracy ≤ 0.5kPa

Repeatability ≤ 3.0 ℃ (closed flash point ≤ 110 ℃); ≤ 5.0 ℃ (closed flash point>110 ℃)

Heating rate step A: 5-6 ℃/min; Step B: 1.0~1.5 ℃/min; Step C: 2.5~3.5 ℃/min

Ignition method: electric ignition

Flash fire detection method K-type thermocouple

Temperature Control Intelligent Temperature Control

Air bath thickness 6.4mm

Display real-time temperature curve and switch between Chinese and English

Unrestricted data storage, based on EMMC space

Other functions: data export, data upload to cloud platform

The printer is thermal sensitive and supports Chinese characters, graphics, and QR codes with no limit on the number of lines

Self checking function detection arm, ignition wire, printer, fan, switch cover, etc

Power supply AC220V ± 10% 50Hz ± 5%

Power ≤ 600W

Environmental temperature 10 ℃~35 ℃

Environmental humidity<85%

Size 43cm * 28cm * 35cm (length * width * height)

Weight 11.7kg
