1、 Purpose:

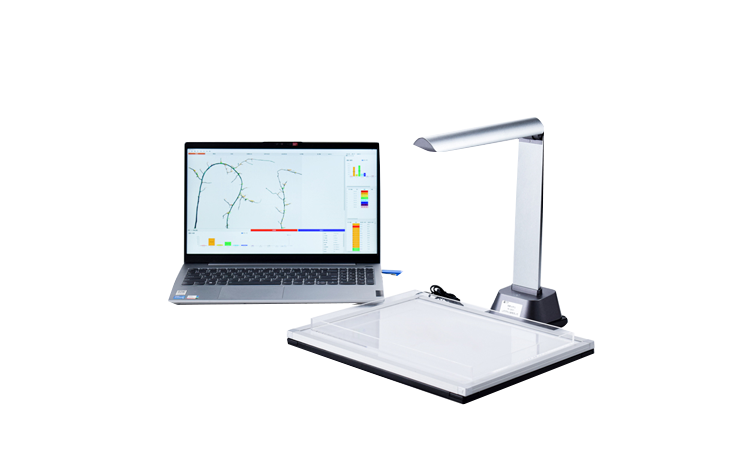

The photo based plant root analysis system is designed for quick photography and automatic analysis of root systems with a diameter of 0.5mm or more after washing, with multiple parameters and batch production. The entire system consists of a high-speed scanner, analysis software (PC end), and a computer (self provided), and its imaging speed is 20 times faster than the scanning model.

2、 Main performance indicators

1. A 20 megapixel color camera with autofocus. The maximum effective analysis size is 297mm × 210mm. Especially suitable for rapid and automatic analysis and measurement of root systems with a diameter of 0.5mm or more.

2. Analyzable measurement:

(1) Root length;

(2) Branch frequency;

(3) Root average diameter;

(4) Median root diameter;

(5) Maximum diameter;

(6) Total root area;

(7) Total projected area;

(8) Total volume of roots;

(9) Root tip counting;

(10) Fork counting;

(11) Overlap counting;

(12) Root diameter grade distribution parameters;

(13) Customizable segmented diameters with unequal spacing, automatically measuring the length, projected area, surface area, volume, and distribution parameters of each diameter segment.

(14) Capable of conducting color analysis of root systems, determining the number of surviving roots, and outputting the diameter, length, projected area, surface area, and volume of roots of different colors.

(15) It can perform topological analysis of the root system, automatically determine the number of connections, relationship angles, etc. of the roots, and can also automatically analyze the length, area, volume, etc. of the main root or any lateral root separately. It can display the corresponding parameters of any diameter segment of the marked root system separately (customizable with unequal spacing).

(16) It can perform root fork pruning, merging, connecting and other corrections, and the correction operation can be rolled back to quickly obtain 100% correct results.

(17) The box dimension method can be used to automatically measure the fractal dimension of root systems. The number of root nodules can be analyzed to objectively determine the contribution of rhizobia.

(18) Large scale fully automated root system analysis, batch saving, and editing and correction of various analysis result graphs.

(19) Extract analysis characteristics from corner analysis and horizontal angle analysis.

(20) Each analysis image, distribution chart, and result data can be saved and exported to an Excel spreadsheet, and analysis marker charts can be output.

(21) The instrument has cloud platform support, which allows analysis data to be saved to the cloud for viewing anytime and anywhere

3、 Standard configuration

1. 1 set of software USB flash drive and software lock for plant root analysis system

2. 1 autofocus 20 megapixel high-speed camera (A4 format)

3. One root imaging disc

4. 1 set of ultra-thin luminous panel kit

4、 Other

1. This product requires the use of a computer, and it is recommended to choose a branded computer (Core i5 9th generation or above CPU/16GB memory/24 "color display/wireless network card, 4 or more USB 2.0 ports, running on Windows 10 Full Professional or Enterprise Edition).
