Product Usage:

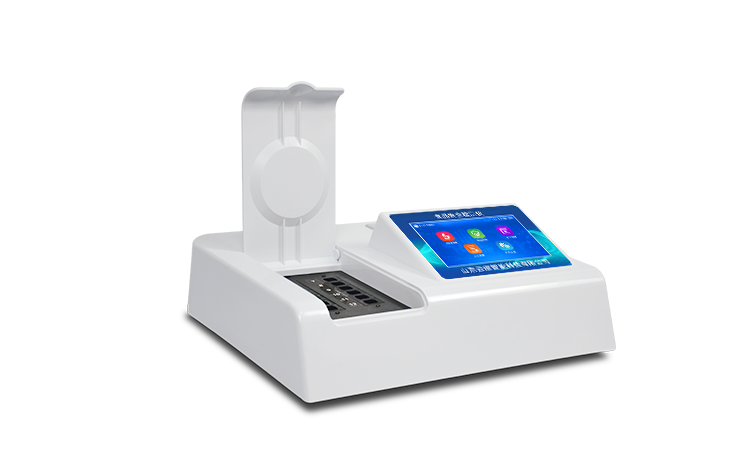

The edible oil peroxide value detector is an integrated oil rapid detection and analysis equipment, which can quickly detect the peroxide value content in edible vegetable oil, edible lard, peanut oil, sunflower oil, rice bran oil, food, and meat products; Through testing, it can be determined whether vegetable oil meets national standards or whether it is inferior oil, gutter oil, etc. Reserve other testing programs and ports for the instrument, and easily add testing items according to future needs. In the future, it can be upgraded to a comprehensive type instrument for detecting aquatic and noodle products.

Instrument application:

Widely used in quality supervision and inspection, business management, fried food production bases, food and drug supervision bureaus, health departments, meat product processing enterprises, shopping malls and supermarkets, major food safety monitoring systems and other units.

Function Introduction:

1. The Android intelligent operating system adopts more efficient and user-friendly operation. The instrument has Ethernet connection, WiFi network upload, GPRS wireless remote transmission function, and can quickly upload data.

2. Integrated portable rapid testing equipment, meeting the needs of on-site and mobile testing, capable of detecting all testing items under the same software, and displaying testing results intuitively through the same window.

3. High degree of intelligence, the instrument has self checking function: it has power on self checking and zero adjustment functions, and automatic detection of repeatability function.

4. Detection channels: ≥ 12 detection channels, capable of testing multiple samples simultaneously. Each sample is controlled by a program to work independently without interfering with each other.

5. Display mode: ≥ 8-inch LCD touch screen display, user-friendly Chinese operation interface, intuitive and simple reading.

6. Equipped with a new generation embedded thermal printer, it can choose between manual printing or automatic printing. After the inspection is completed, the inspection report and QR code can be automatically printed.

7. The light source adopts imported ultra high brightness light-emitting diodes, which have high precision, strong stability, controllable light source, can turn off unused light sources, and lower power consumption.

8. Designed with USB 2.0 interface, it is convenient for data storage and movement, and can be directly connected to a computer at any time. The instrument can also be controlled by a computer. Implement data query, browsing, analysis, statistics, printing, etc.

9. The instrument has a multi category sample menu library, which allows for flexible selection of detection samples. Different detection channels can simultaneously detect different sample items.

10. Sample processing is simple and labor-saving, and the overall operation is fast, safe, and convenient.

11. The instrument has its own protection function, which can set a username and password to prevent non staff operations.

12. High sensitivity, high detection accuracy, high repeatability accuracy, scanning high-precision optical sensor.

13. The peroxide value detection instrument has the functions of recalibration, locking, and factory reset.

14. The result judgment line can be modified, the reference value calibration value can be saved, and data will not be lost when power is turned off.

Technical parameters of peroxide value and acid value detector:

☆ Accuracy error: ± 3%

☆ Linear error: ± 5 ‰

Stability: ± 0.001A/hr

☆ Wavelength accuracy:<2.0nm

☆ Transmission specific gravity repeatability: ± 1%

☆ Lower limit of edible oil detection: 0.2mg KOH/g

☆ Lower limit for meat products and food testing: 0.5mg KOH/g

☆ Linear range: 0.2~10 mg KOH/g

☆ Data storage of 200000 records

☆ Colorimetric dish: 10 × 10mm standard sample cell

☆ Appearance size: 415X310X150 (mm)
