Product Usage:

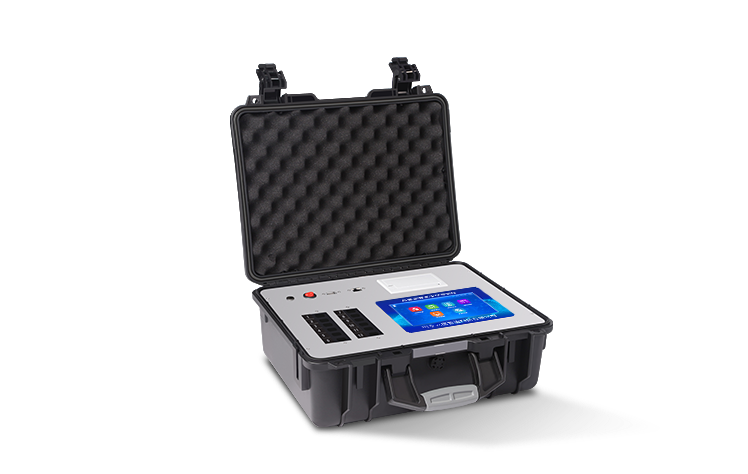

The edible oil comprehensive detection and testing device is an integrated oil rapid detection and analysis equipment, which can quickly detect the acid value, peroxide value, aflatoxin and other contents in edible vegetable oil, edible lard, peanut oil, sunflower oil, rice bran oil, food, meat products, etc; Through testing, it can be determined whether vegetable oil meets national standards or whether it is rancid oil, inferior oil, gutter oil, etc. Reserve other testing programs and ports for the instrument, and easily add testing items according to future needs. In the future, it can be upgraded to a comprehensive type instrument for detecting aquatic and noodle products.

Instrument application:

Widely used in quality supervision and inspection, business management, fried food production bases, food and drug supervision bureaus, health departments, meat product processing enterprises, agricultural departments, inspection and quarantine departments, shopping malls and supermarkets, major food safety monitoring systems and other units.

Functional features:

1. The Android intelligent operating system adopts a more efficient UI interactive interface, and the instrument has functions such as WiFi network upload, 4G network transmission, GPRS wireless remote transmission, and network cable connection, which can quickly upload data in batches.

2. High degree of intelligence, the instrument has self checking function: it has power on self checking and zero adjustment functions, and automatic detection of repetition function.

3. The new generation of high-speed thermal printers can automatically print and batch print inspection reports and QR codes upon completion of testing.

4. The instrument is equipped with a supervision platform, and the data can be uploaded on the LAN and Internet, and the test results can be directly transmitted to the food safety supervision platform. Conduct regional food safety supervision, big data analysis and processing, and data statistics, detect the long-term and short-term dynamics of regional food safety, and achieve food safety problem estimation and early warning

5. Integrated host, including photoelectric colorimetric detection module and colloidal gold immunochromatographic detection module.

6. Integrated portable rapid testing equipment, meeting the needs of on-site and mobile testing, capable of detecting all testing items under the same software, and displaying testing results intuitively through the same window.

7. Colloidal gold module detection method: track type automatic transmission scanning, automatically exits the detection card after the detection is completed.

8. The CT line of the food safety detector is automatically recognized without manual adjustment, and the CT coordinate curve is automatically displayed after the detection is completed.

9. Built in powerful database with multi category and multi type sample menu function, allowing flexible selection of testing samples. Different testing channels can simultaneously test different sample items. It is also possible to directly edit and input information such as sample name, testing indicators, testing units, etc. on the instrument and save them into the sample database.

10. The built-in operation demonstration video of the instrument is your laboratory guidance expert by your side.

11. Sample processing is simple and labor-saving, and the overall operation is fast, safe, and convenient.

12. The instrument has its own protection function, which can set a username and password to prevent non staff operations.

13. High sensitivity, high detection accuracy, high repeatability accuracy, scanning high-precision optical sensor.

14. The result judgment line can be modified, the reference value calibration value can be saved, and data will not be lost when power is turned off.

15. Compatible with all colloidal gold cards on the market, with unrestricted use of consumables, greatly enhancing the user experience.

16. The instrument has the functions of recalibration, locking, and factory reset.

Main parameters:

1. The main control chip adopts ARM Cortex-A7, RK3288/4-core processor, with a main frequency of 1.88GHz, faster operation speed and stronger stability.

2. Display mode: 7-inch LCD touch screen display, user-friendly Chinese operation interface, intuitive and simple reading.

3. Dual use of AC and DC, powered by 12V DC, can be connected to a car power supply, and can be equipped with a 6-hour large capacity rechargeable lithium battery for convenient outdoor flow testing.

4. Four wavelength cold light source, 12 detection channels, each equipped with 410, 520, 590, 630nm wavelength light sources, standard with advanced optical path switching device, professional optical path switching function can achieve up to 64 wavelengths, and all detection items can achieve simultaneous detection of all channels.

5. Intelligent constant current and voltage stabilization, automatic adjustment and calibration of light intensity, and long-term continuous operation of the light source without temperature drift phenomenon.

6. Built in new national limited edition standards, on-site comparison with measured results, and continuous updating of standards.

7. Continuous injection and testing

8. Sample numbers are automatically accumulated.

9. The data can be uploaded wirelessly to the platform and exported as an Excel spreadsheet.

10. Storage capacity for 200000 test results

11. Simultaneously supports USB copying, standard USB interface, and driver free plugging and unplugging.

12. The detection items are expandable and the firmware can be upgraded

13. Instrument size: 43 × 35 × 19cm, net weight of host: 5.1kg

Technical parameters of edible oil comprehensive detector:

☆ Accuracy error: ± 3%

☆ Linear error: ± 5 ‰

Stability: ± 0.001A/hr

☆ Wavelength accuracy:<2.0nm

☆ Transmission specific gravity repeatability: ± 1%

☆ Lower limit of edible oil detection: 0.2mg KOH/g

☆ Lower limit for meat products and food testing: 0.5mg KOH/g

☆ Linear range: 0.2~10 mg KOH/g

☆ Data storage of 200000 records

☆ Colorimetric dish: 10 × 10mm standard sample cell

☆ Appearance size: 415X310X150 (mm)
