Product Usage:

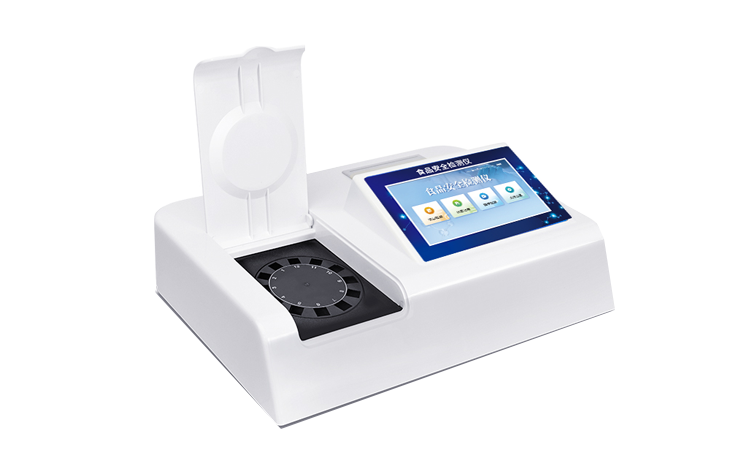

The food heavy metal detector produced by Shandong Yuntang Intelligent Technology Co., Ltd. is an integrated food safety rapid detection and analysis equipment. It adopts a desktop integrated design and can quantitatively detect heavy metals such as lead, cadmium, hexavalent chromium, mercury, arsenic, iron, nickel, aluminum, etc. in rice, grains, fruits, vegetables, medicinal materials, and aquatic products (choose 5 items). The instrument reserves detection programs and ports for other items, and can be upgraded according to future needs

The food heavy metal detector is an integrated food safety rapid detection and analysis equipment, which is currently widely used in market supervision bureaus, grain processing enterprises, school canteens, supermarkets, distribution centers, health departments, inspection and quarantine departments and other units.

Technical indicators:

1. The instrument adopts desktop integrated system detection technology, which highly integrates the spectrophotometric module, digital management module, and wireless communication module into one, supporting the detection of dozens of food safety testing projects, while reserving upgrade detection methods.

2. The instrument detection module is standardized and intelligent, and the detection items can be freely combined. The detection box is equipped with multiple standard detection units, and the detection modules can be adjusted for configuration.

3. Display screen: The instrument adopts a 7-inch LCD touch screen, running on the Android intelligent operating system. The main control chip adopts ARM Cortex-A7, RK3288/4-core processor, with a main frequency of 1.88GHz, easy to operate, and stronger performance.

4. Detection channel: ≥ 12 channels; Adopting a precision rotating colorimetric cell design and using the same chip and light source for calibration accuracy, it solves the error values between different light sources, making it more accurate and efficient.

5. Instrument light source: High precision imported four wavelength cold light source, each channel is equipped with 410, 520, 590, 630nm wavelength light sources, and comes standard with advanced optical path switching devices. The patented optical path switching function can achieve 64 wavelengths, and all detection items can be detected simultaneously in all channels.

6. Communication interface: equipped with wireless communication module, optional 4G (APN) communication module and Bluetooth transmission, and also has USB interface, which can achieve data storage and transmission in multiple ways.

7. Storage method: Supports USB storage, standard USB interface, no driver installation required. The storage capacity of the test results is over 200000 pieces, and it can generate Excel spreadsheets for copying, with login protection function.

8. Intelligent operating system:

8.1 Operating System: The instrument can automatically correspond to relevant detection channels on the same detection interface, selecting 1-12 sample names at once without exiting the interface, saving operation time. And each channel attribute and sample information can be edited separately, such as the sending unit, personnel, testing personnel, etc. When printing, check the print display option.

8.2. Limited amount regulation system: equipped with a limited amount query and compliance determination system for adding substances. After detecting the results, the system automatically calls the relevant national standards in the system database for comparison and judgment, objectively displaying whether the results are qualified.

8.3 Data supervision system: the data can be uploaded via LAN and Internet, and the test results can be directly transmitted to the food safety supervision platform. Conduct regional food safety supervision, big data analysis and processing, and data statistics, detect the long-term and short-term dynamics of regional food safety, and achieve food safety problem estimation and early warning.

8.4 Printing System: Equipped with a brand new printer, it can print information such as project name, QR code, sampling information, testing information, inspection information, review information, sampling date, testing date, etc.

9. Power supply mode: The instrument can be used for both AC and DC, with a 12V DC power supply (standard). It can be connected to a car power supply or optionally equipped with a 6-hour high-capacity rechargeable lithium battery. The battery level can be displayed in real-time, making it convenient for outdoor mobile testing.

10. The instrument has the functions of recalibration, locking, and factory reset,

11. Appearance size: 415X310X150 (mm), and can be equipped with an aluminum alloy carrying case
